Technishield 50
- Fire Resistance:
- E30, E60
- Profile
- 50mm x 70mm
- Door set:
- Single
- Minimum
- 1800mm
- Maximum
- 3000mm
- Minimum
- 955mm
- Maximum
- 1230mm
Height
Width
Technishield
Fire-rated glass partitions and doors delivering 30 to 120 minutes of certified protection, without compromising design.
The Technishield range delivers high-performing fire-rated glass partitions and doors that meet the visual and practical demands of modern office design. From slim aluminium profiles to robust steel-framed systems, every product is engineered to provide certified fire protection while maintaining the aesthetic of your workspace.
Key features
Certified Fire Protection
From 30 to 120 minutes of integrity and insulation, the Technishield range meets the most demanding fire safety requirements with European E and EI rated systems.
Acoustic Performance
Achieve up to Rw47dB acoustic ratings using standard fire-rated glass products, with enhanced performance available through additional lamination or double-glazed units.
Flexible Configurations
Available as screens, single and double doors, side panels, and over panels, with butt-jointed, mullion, or fully framed glazing options to suit any elevation.
Optima Technishield Range
Technishield product variants will appear here once published in WordPress.
Tested. Certified. Trusted.
Every Technishield system is rigorously tested to the highest standards. Acoustic performance is measured on full-height, multi-module screens with glazing joints and perimeter trackwork, not simplified window samples, ensuring the ratings you specify are the ratings you get on site.
European Fire Standards
Fire ratings conform to European classification standards (EN 13501-2) with integrity (E) and insulation (I) ratings from 30 to 120 minutes.
NBS Listed
Technishield systems are listed on the National Building Specification for straightforward specification by architects and designers.
UKAS Accredited Testing
All acoustic performance data is laboratory tested in UKAS-accredited facilities, with full test reports available on request.
FIS Acoustic Verification
Acoustic testing follows the FIS Acoustic Verification Scheme requirements for real-world, full-height multi-module screen testing.
Applications
Technishield systems are specified across a wide range of commercial environments where fire compartmentation, escape route protection, and design quality are all essential.
- Office Compartmentation
- Corridor Protection
- Stairwell Enclosures
- Server & Plant Rooms

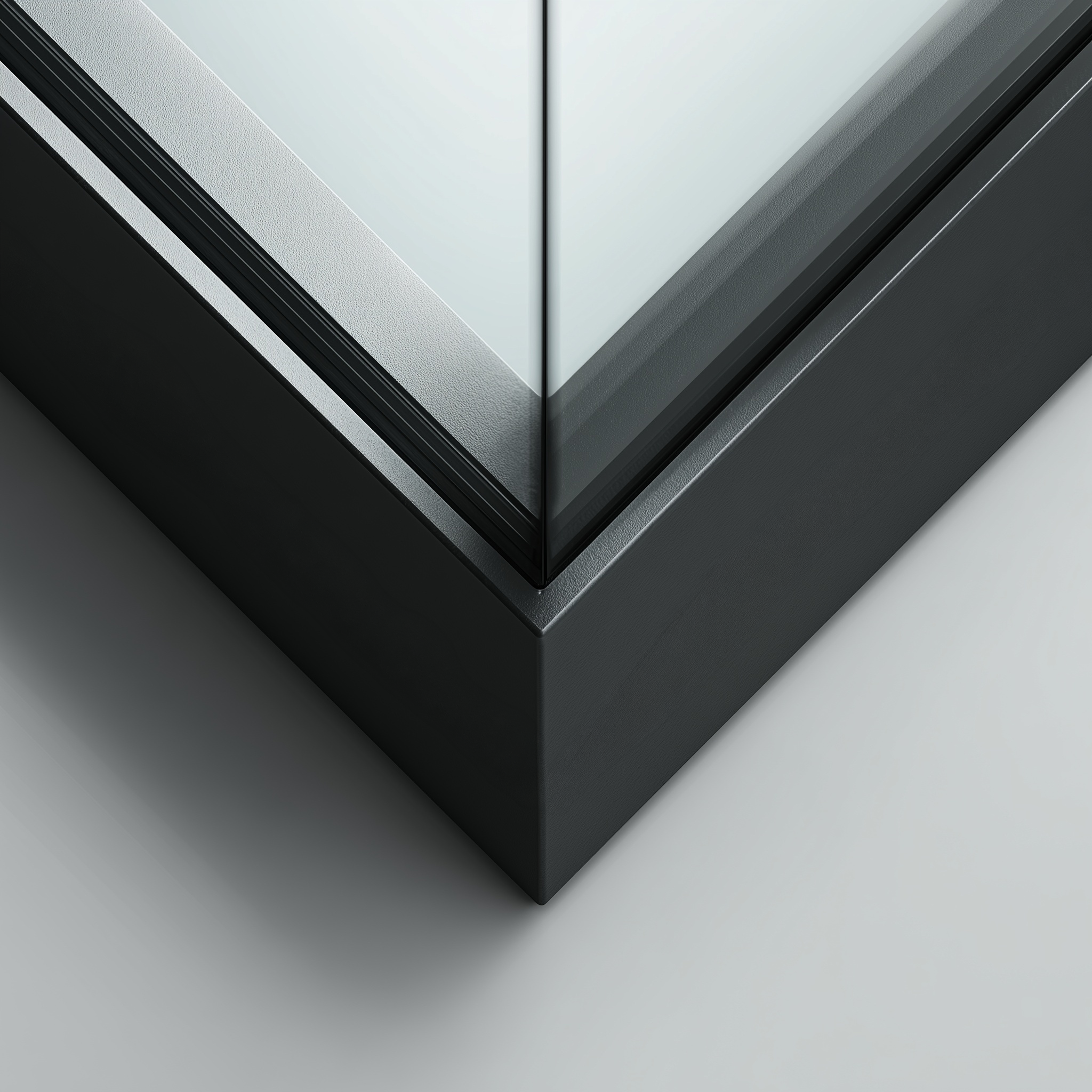

Finishes
We offer a wide range of finishes for our glass partitions and door frames. Explore a selection of colours and textures that add another layer of individuality to every space.
Black
Technishield Fire-rated door configurations
The Technishield 50, 65 and 70 systems each include compatible fire-rated door sets. Select a configuration to compare specifications and size limits across all three systems.
Technishield 65
- Fire Resistance:
- EI30, EI60
- Profile
- 65mm × 70mm
- Door set:
- Single
- Minimum
- 1800mm
- Maximum
- 3000mm
- Minimum
- 955mm
- Maximum
- 1460mm
Height
Width
Technishield 70
- Fire Resistance:
- EI90
- Profile
- 70mm × 70mm
- Door set:
- Single
- Minimum
- 1800mm
- Maximum
- 2320mm
- Minimum
- 955mm
- Maximum
- 1230mm
Height
Width
Technishield FAQ's
What fire ratings are available across the Technishield range?+
The range covers E30 (30 minutes integrity) through to EI120 (120 minutes integrity and insulation). Technishield 25 and 54 offer E30, Technishield 50 offers up to E60, Technishield 65 offers EI30/EI60, Technishield 70 offers EI90, and Technishield 110 offers up to EI120.
What is the difference between E and EI fire ratings?+
E-rated systems (integrity only) prevent the passage of flames and hot gases. EI-rated systems provide both integrity and insulation, also limiting heat transfer through the partition. EI ratings are required where people may be close to the barrier.
What acoustic performance can be achieved?+
Acoustic ratings range from Rw37dB with single glazed systems up to Rw47dB with the Technishield 110. Enhanced ratings are achievable through lamination or double glazing.
Can Technishield systems accommodate doors?+
Yes — Technishield 50, 65, and 70 all include door options. Single doors, double doors, doors with over panels, and doors with side panels are available depending on the system.
What glazing joint options are available?+
Glass panels can be connected via 5mm fire-rated silicone butt joints (available in grey, white, or black) or vertical mullions for a fully framed appearance.
Are the systems tested to recognised standards?+
Yes — all systems are tested in UKAS-accredited laboratories. Acoustic testing follows FIS Acoustic Verification Scheme requirements using full-height, multi-module screens.
